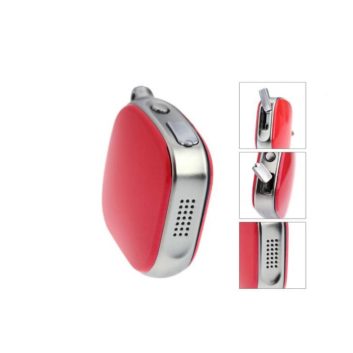

Shenzhen JS-A9 Mini

Home » GPS Tracker » Shenzhen JS-A9 Mini

Manufacturer: Shenzhen Jin Sheng International

Delicate appearance pendant, GPS + WIFI + LBS multimode precise positioning, static dormancy save electricity design, real-time positioning, intelligent monitoring

INFORMATION
FEATURES

Name	Description
Server Port

1. structure division
structure parts	category	specification	remarks
	ID design	delicacy and smart
	Whole machine size	38.5X38.5X17mm
	Weight	22g without package, 130g with package box
	colour	Color Optional
	button	one button（power/SOS button)
	screen	no
	gps antenna	High sensitive ceramics active antenna
	GSM antenna	FPC antenna
	battery	500mAh
	SIM card slot	1 pc
	G-sensor	support
	I/O port	USB charge
2. Hardware parts
Hardware parts	CPU	MTK MT6261
	GPS chip	MTK3337
	GPRS	Class12
	GPS signal	L1,1575.42MHz C/A
	GPS channel number	22 channels
	GPS chip receive sensitivity	Tracking sensitivity:-165dBm，capture sensitivity：-148dBm
	GPS location accuracy	5～15M
	LBS location accuracy	100-1000M
	Minimum standby current	less than 0.5 mA
	Average stndby current	less than 2.5 mA
	Average working current	around 55mA
	Working temperature	-20～70℃
	Working humidity	5% to 95% non-congealable
	Test and certification	can approval by 3C,CE&ROSH
	GPS antenna	Built-in high sensitivity FPC antenna
	GSM antenna	Built-in four frequency method of antenna
	bluetooth	bluetooth 3.0（Normal closed）
	G-sensor	Support
	MIC	Support
3. software parts
software parts	supported operating systems	Support android 2.3 and above system, IOS5.0 and above.
	call function	double talk/The remote monitoring
	Language support	Simplified Chinese and English	Compatible with support for multi-languages
	GSM+GPRS+GPS	GPS+LBS+WIFI Multi-modal positioning
	support AGPS	Cold start 26 seconds positioning
	call function	SOS call, voice monitor, whitelist for don’t disturb
	power management	Ultra-low power consumption of power management,intelligent dormancy
	One key emergency	SOS one key emergency function ,autodialing
	Smart Geo-fence	Outside the range setting can be automatic alarm
	historical route	Can check history of three months
	wireless upgrading	Software upgrade, remote debugging maintenance, remote setting parameters
