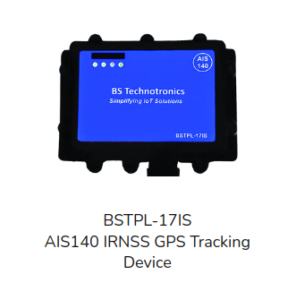

BS Technotronics BSTPL-17IS

Home » GPS Tracker » BS Technotronics BSTPL-17IS

Manufacturer: BS Technotronics Private Limited

BSTPL-17IS is an advanced GNSS & IRNSS based vehicle tracking device complying to newly introduced intelligent transport system standards, AIS-140. BSTPL-17IS Designed for complying to standards like IS 9000, ISO 16750, AIS 004, IEC 60529, IS 2465, ISO 6722, ISO 7637 and IP67. In addition to fulfilling the functionality requirements as required by AIS-140, the device meets interface requirements like multiple IO Ports, SOS (Emergency Button) and RS-232 interface.

FEATURES

32 Bit; Cortex Microcontroller
45000 Data Packets Storage
Expandable to 100000 Data Packets Storage
Wide DC Input Operating Voltage (7V to 36V)
Main Power Reverse connection protection
Main Power Over Voltage protection
Built-In 3.7V / 1000 mA Li-Ion Battery
Main Power Voltage Reading
Multi Slot Class 12 GSM / GPRS Modem
Supports SMS; TCP/IP; FTP, HTTP, HTTPS & QMTT Communication Protocols
Supports eSIM With Profile Switching. Optional Micro SIM Provision
Supports IRNSS, GPS, GLONASS & GALILEO. Also Supports GAGAN and AGPS
22 Tracking & 66 Acquisition Channels
Receiver Sensitivity: -165 dBm
Local and Over The Air (OTA) Software Update
Local and Over The Air (OTA) Configuration
Secured Over The Air (OTA) Configuration
Configurable Data Sending Intervals
Details of Network Operator Name, Serving Cell ID and Neighbouring Cell ID Info
Five Digital Inputs

Two Analog Inputs
Two Digital Outputs
SOS Interface
RS-232 Interface
CAN Support*
3 Axis Accelero & Gyrometer
GPS Odometer
Provision for 3 server IPs and Ports
LED Indication for Main Power; Internal Battery, GSM and GPS Status
GPRS to SMS Fall Back
Supports Sleep Mode function for longer battery Backup
Box Open / Close detection
Main Power Connect / Disconnect detection
GSM Internal Antenna
GNSS & IRNSS Internal Antenna
Nylon Plastic Enclosure complying to IP67
Dynamic Data Sending
Alerts For Main Power Connect / Disconnect, Device Tamper, Over Speed, Harsh Breaking, Harsh Acceleration and Turning
